Screw Type Waterproof Male Female Connector , Dustproof Metal Circular Connectors

Name: Screw Type Waterproof Male Female Connector Dustproof Metal Circular Connectors
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : M12

Certification : UL , CE , CQC , ROHS

Place of Origin : Shenzhen China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram , Paypal

Supply Ability : 10000 / day

Delivery Time : 3 - 5 days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Connector Name : M12 4Pin Power Connector

Connector Type : Screw Tyep

Wiring : Soldering

Shell Color : Black

Shell Material : PA66

Warranty : 5Years

Contact Now

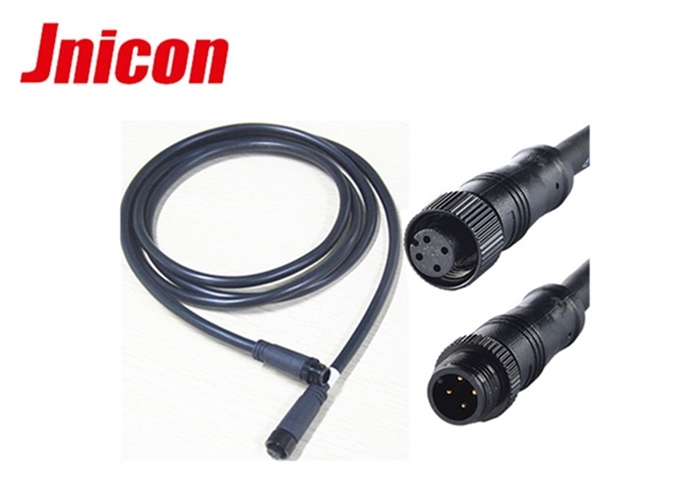

IP68 Metal Screw Type Waterproof Male Female Connector , Dustproof Circular Connector

Description of Connector

1. M12 4pin waterproof male female connector .

2. Cable overmold circular connector ( max φ 9.0 mm )

3. Not only waterproof connector , but also dustproof connector .

4. IP level - IP68

Features and Advantage

Connect the cable by soldering .
The length of cable per your requirement
Application : LED light , LED tube light etc
The size is small , can apply in narrow environment .
Great quality with inexpensive price
Not only waterproof ( IP68 ) , but also dustproof , the dust cap is available
Current : max 10A
Housing material : high - performance engineering plastic

Parameter of 4Pin Male Female Connector

Basic information
Connector Name	M12 4Pin connector
Current / Voltage	10A / 300V
Protection Level	IP68
Shell,Insulating parts	PA66
Material of copper needles	Gold - Plated
Cable Size	0.5mm2 - 1.0mm2
Diameter Range	MAXφ9.0mm
Temperature	-40℃ - 105℃

Pictures

Screw Type Waterproof Male Female Connector , Dustproof Metal Circular Connectors

More service

We can support 1- 3 sets samples in free , but you should pay for the shipping cost
Deal with inquiry in 24 hours
Accept customization , whether it is connector , cable , package or other request .
Delivery time : usually 5 - 7 working days for cable waterproof connector
